GWIN 1.5 Ton - 18,000 BTU - 19.20 SEER2 Inverter Ducted Complete HVAC System

Experience reliable year-round comfort with the GWIN 1.5 Ton (18,000 BTU) Inverter Ducted HVAC System, delivering industry-leading energy efficiency at 19.20 SEER2. Designed for flexible installation, this complete system is built for performance, durability, and user convenience.

Key Comfort & Performance Features

• High Performance: Consistent indoor comfort, even during extreme outdoor temperatures.
• Wide Voltage Range: Operates from 170V–253V to handle power fluctuations and protect the PCB.
• Long Piping Design: Supports up to 98 ft horizontally and 49 ft vertically for flexible installation layouts.
• Auto-Restart: Automatically resumes previous settings after a power outage for uninterrupted comfort.
• Refrigerant Cooling Technology: Helps prevent PCB overheating to extend system lifespan.
• Dual Communication: Compatible with 24V and 485 control systems for easy integration.
• Flexible Mounting Options: Supports vertical, horizontal, or inverted installation to fit different spaces.
• ESP Range: Rated at 0.5 in.W.C. with a maximum of 1.0 in.W.C. for optimized air pressure control.

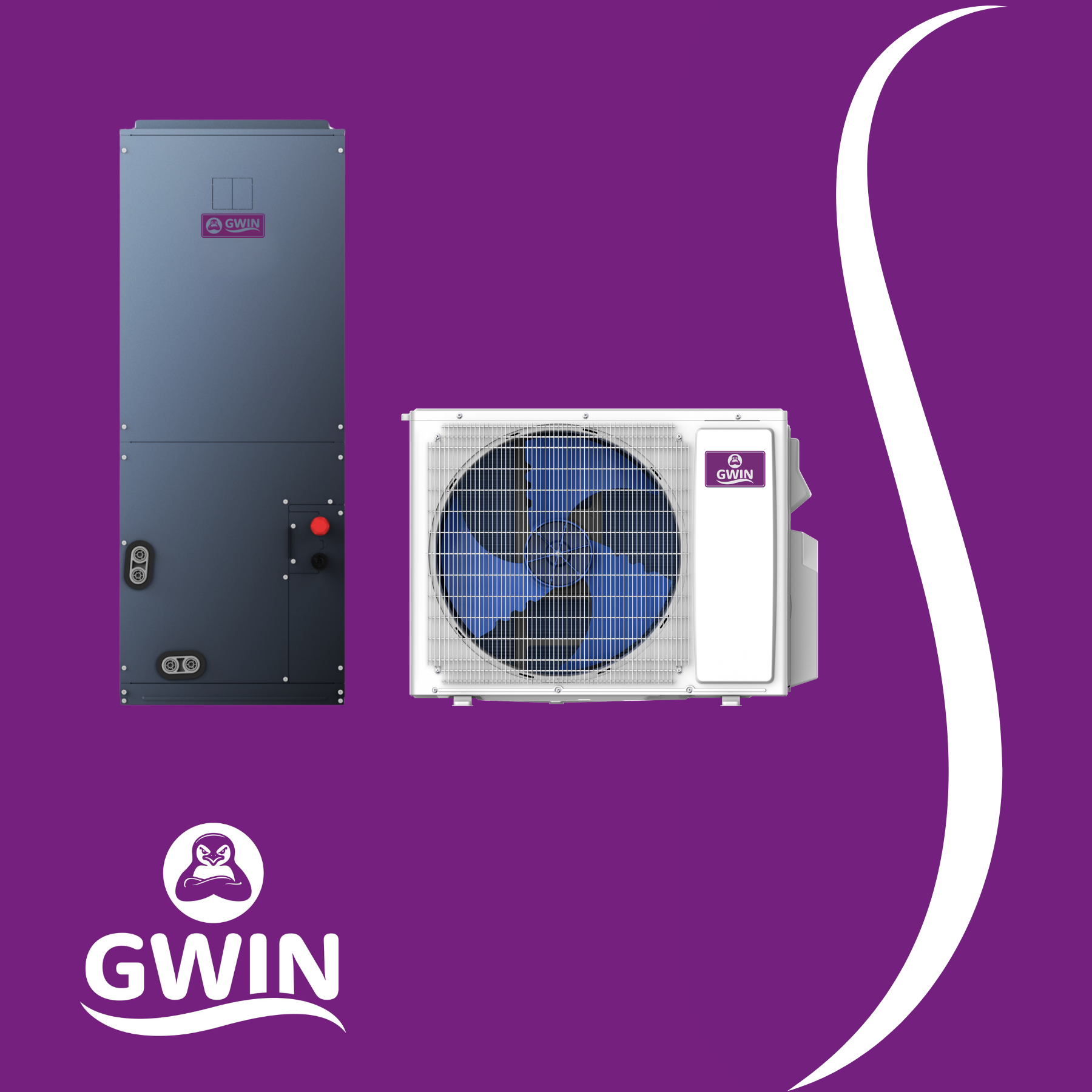

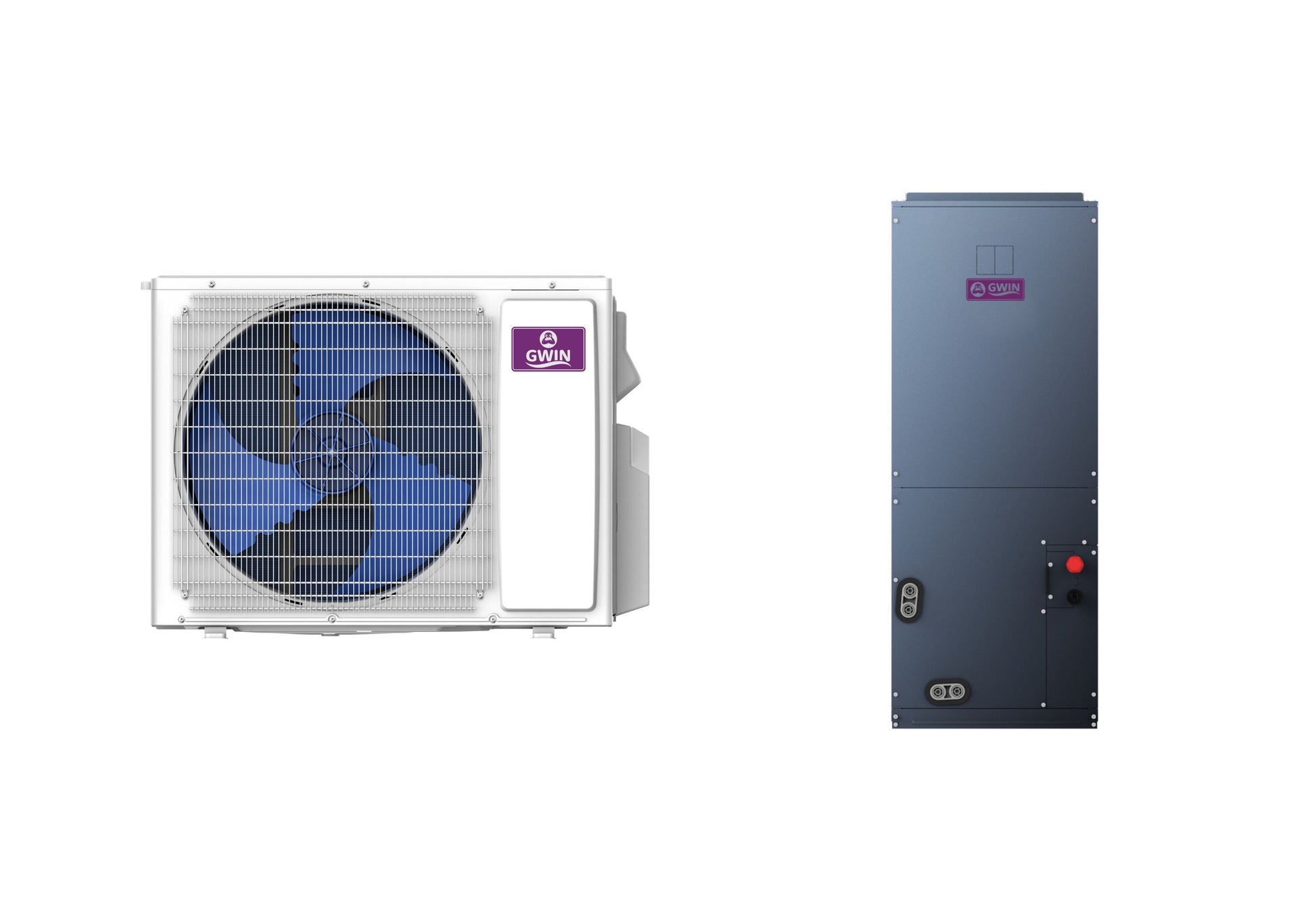

Complete System Includes

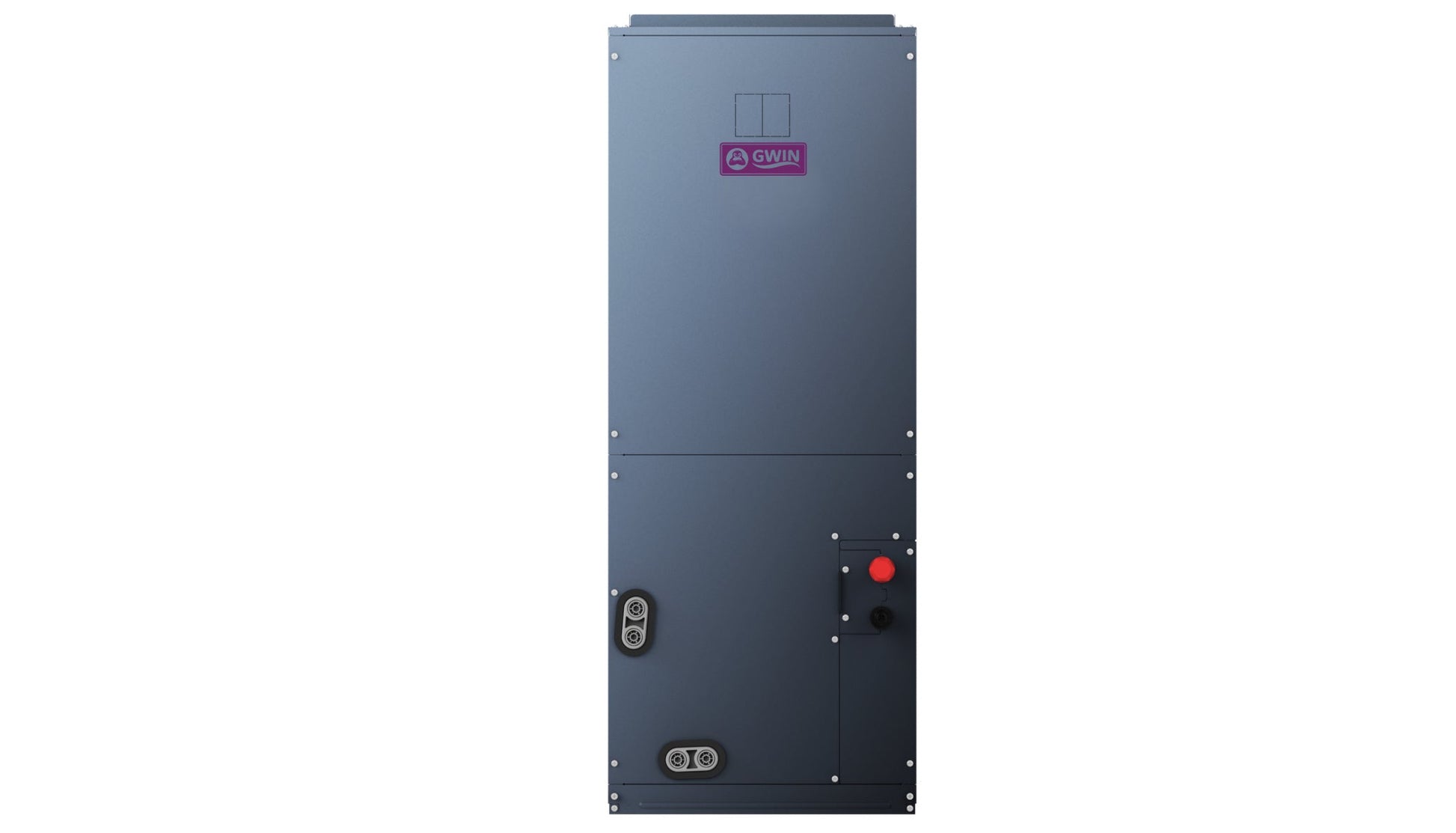

• Indoor Air Handler: Model GAHU18HPV1BI

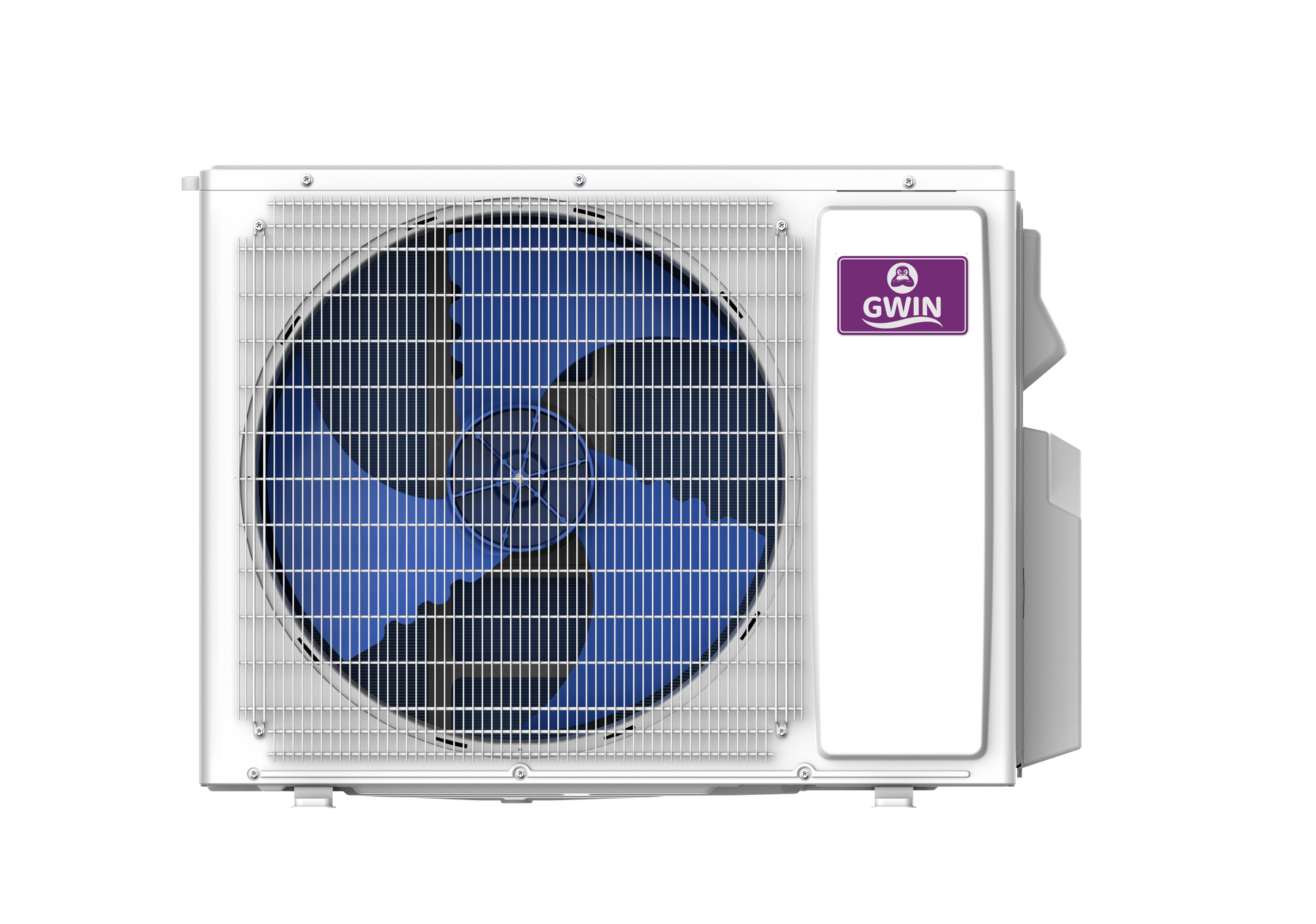

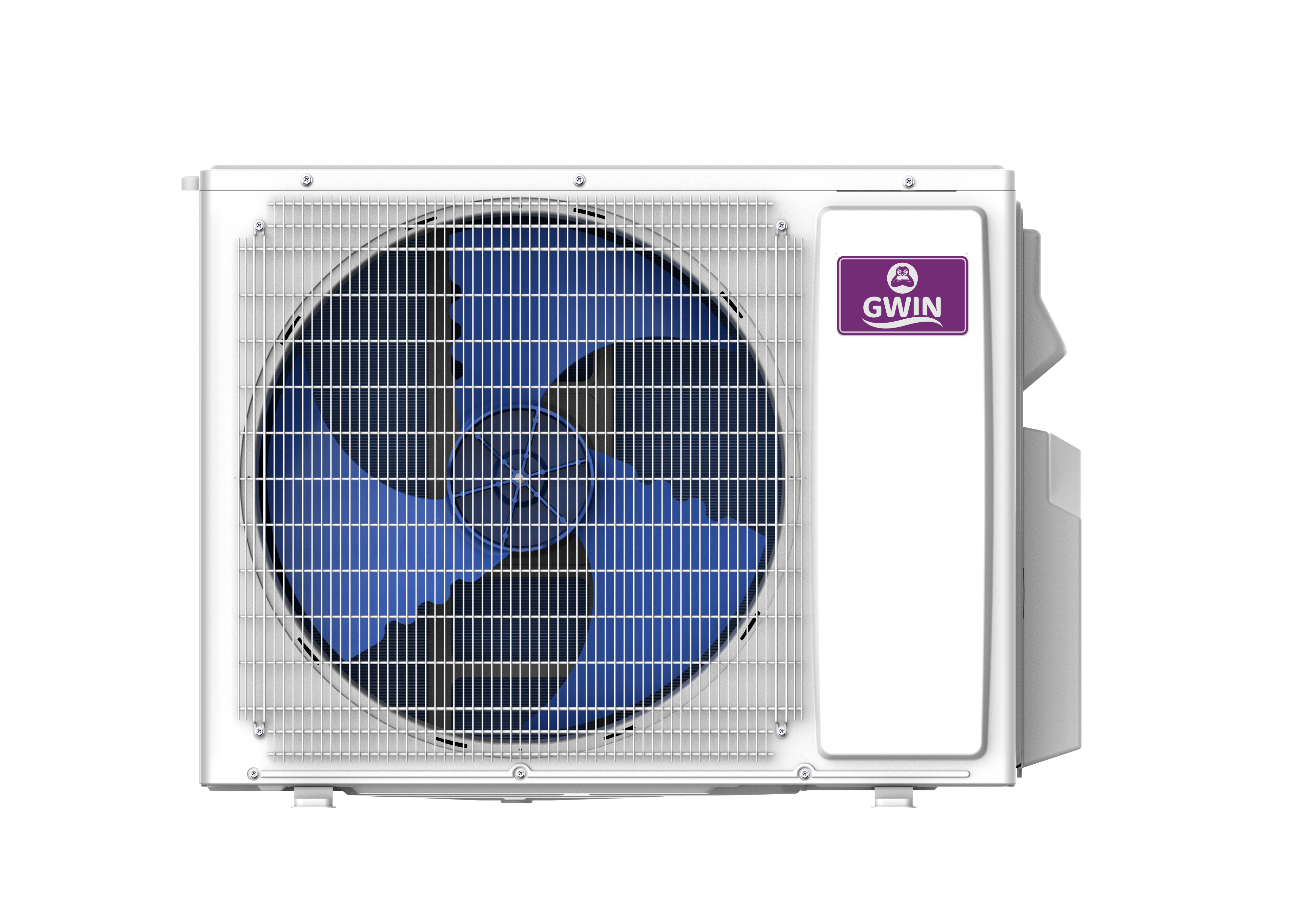

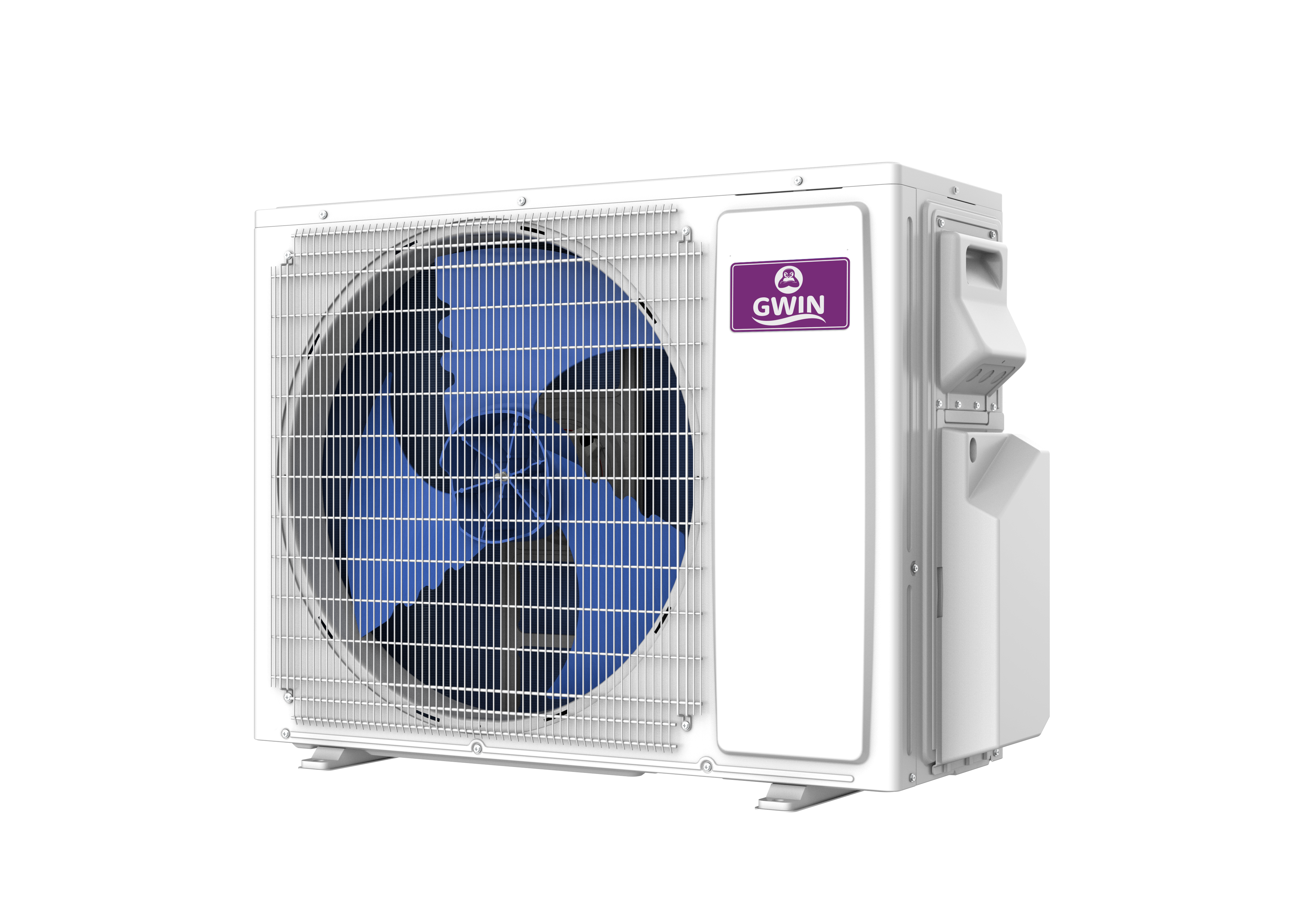

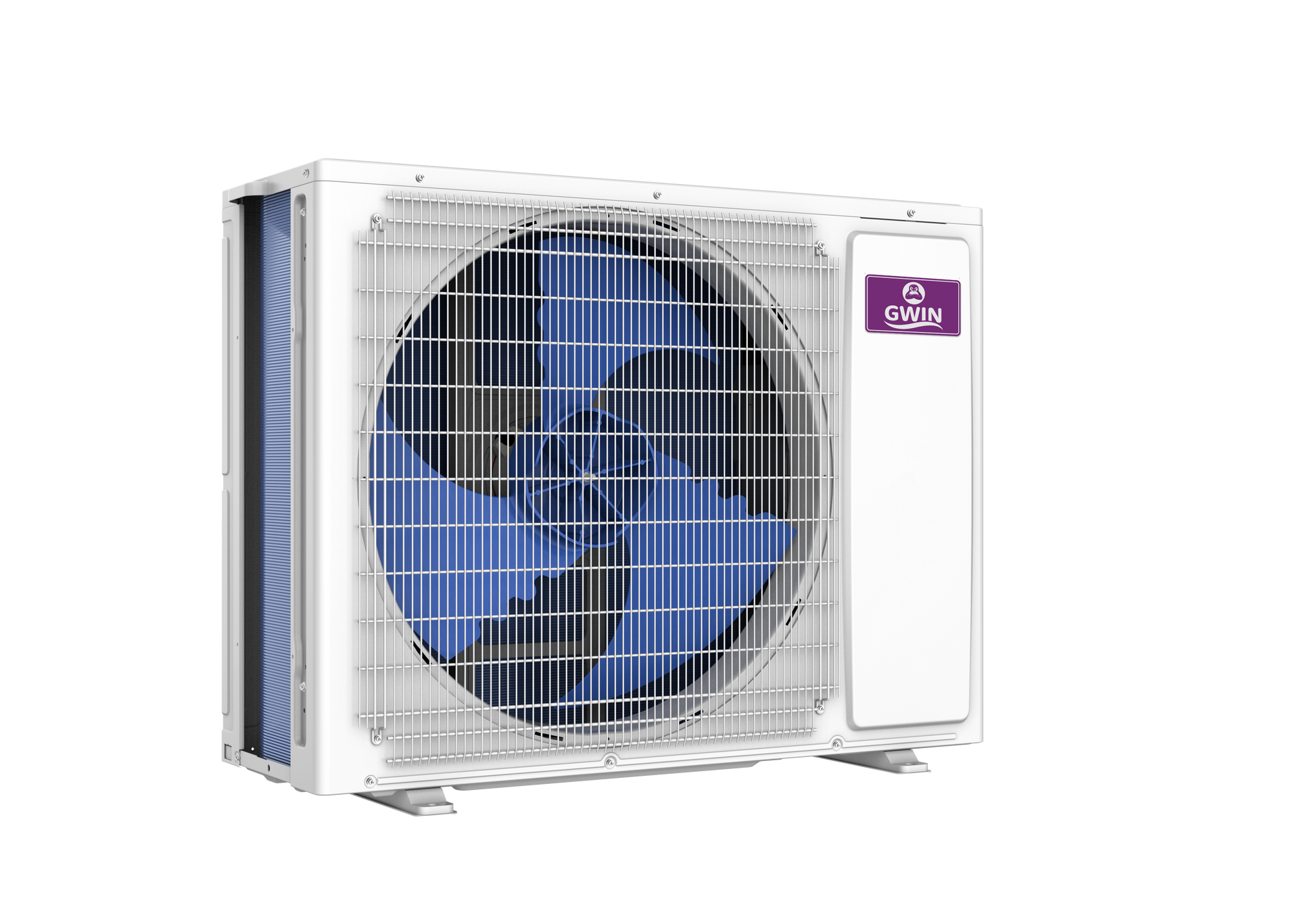

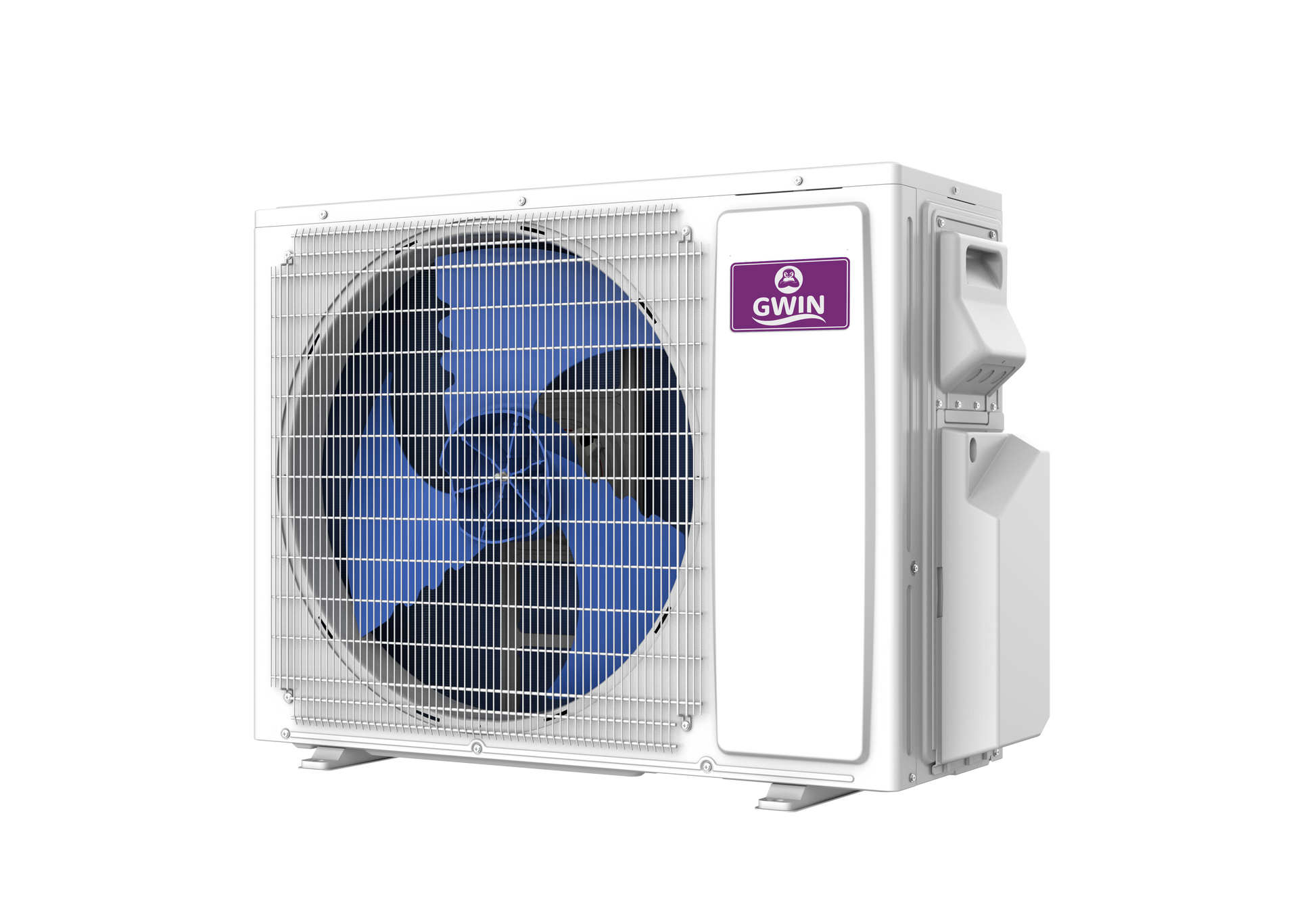

• Outdoor Condenser: Model GAHU18HPV1BO
• AHRI Certified #: 216032392

Air Handler Specifications

• Cooling Capacity: 18,000 BTU (6,000–23,000 BTU Range)
• Heating Capacity: 22,000 BTU at 47°F (4,600–24,000 BTU Range)
• Power Supply: 208/230V, 60Hz, Single Phase
• SEER2: 19.20 | EER2: 11.60 | HSPF2: 9.00
• Indoor Airflow (CFM): 600 / 530 / 440
• Noise Level (dB): 47 / 45 / 43
• ESP Range: 0–1.0 in.w.g (Rated at 0.5)
• Dimensions (W x D x H): 17.5" x 21" x 51.56"
• Line Set: Liquid 3/8" | Gas 5/8"
• Max Piping: 98 ft Length | 49 ft Height

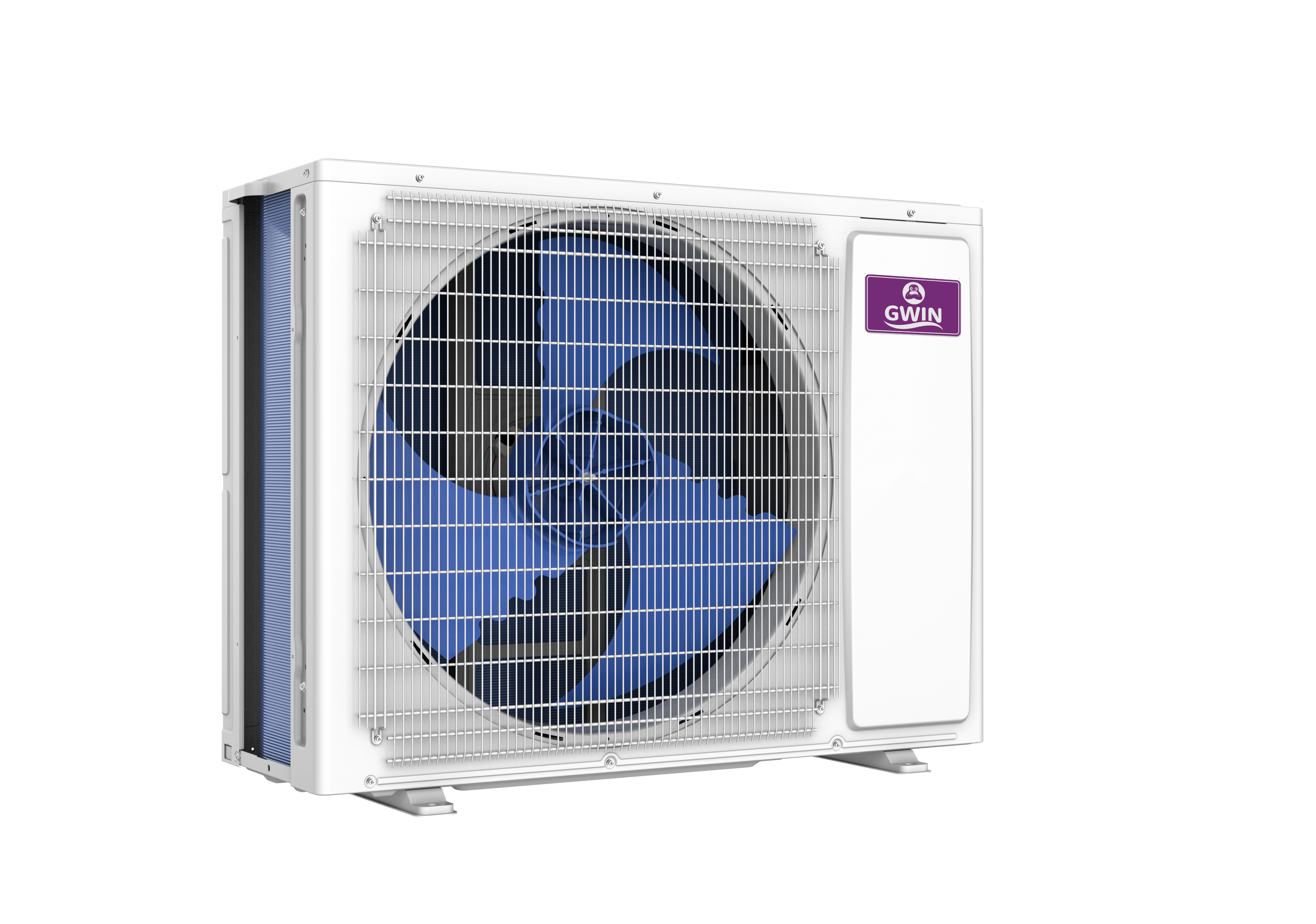

Condenser Specifications

• Cooling Temp Range: 5°F ~ 125°F
• Heating Temp Range: -22°F ~ 75°F
• Air Flow Volume: 2,059 CFM
• Noise Level: 56 dB(A)
• Power Supply: 208/230V, 60Hz, Single Phase
• Max Power Consumption: 2,900W | Max Current: 14A
• MCA / Max Fuse: 18A / 30A
• Recommended Breaker: 25A
• Dimensions (W x D x H): 38.56" x 15.25" x 30.31"
• Refrigerant Charge: 52.91 oz
• Line Set: Liquid 3/8" | Gas 5/8"
• Max Piping: 98 ft Length | 49 ft Height

Why Choose the GWIN 1.5 Ton Inverter Ducted System?

• Perfect for both small and large homes needing flexible ducted installations.
• Energy-saving inverter technology reduces utility bills.
• Durable design with advanced features like auto-restart and refrigerant PCB cooling.
• AHRI-certified for quality and efficiency.
• Ideal for climates with extreme temperatures thanks to its wide heating and cooling ranges.

Notes: Specifications and data are based on laboratory testing and may vary with installation conditions. © 2025 GWIN LLC (USA) Inc.
